General Information

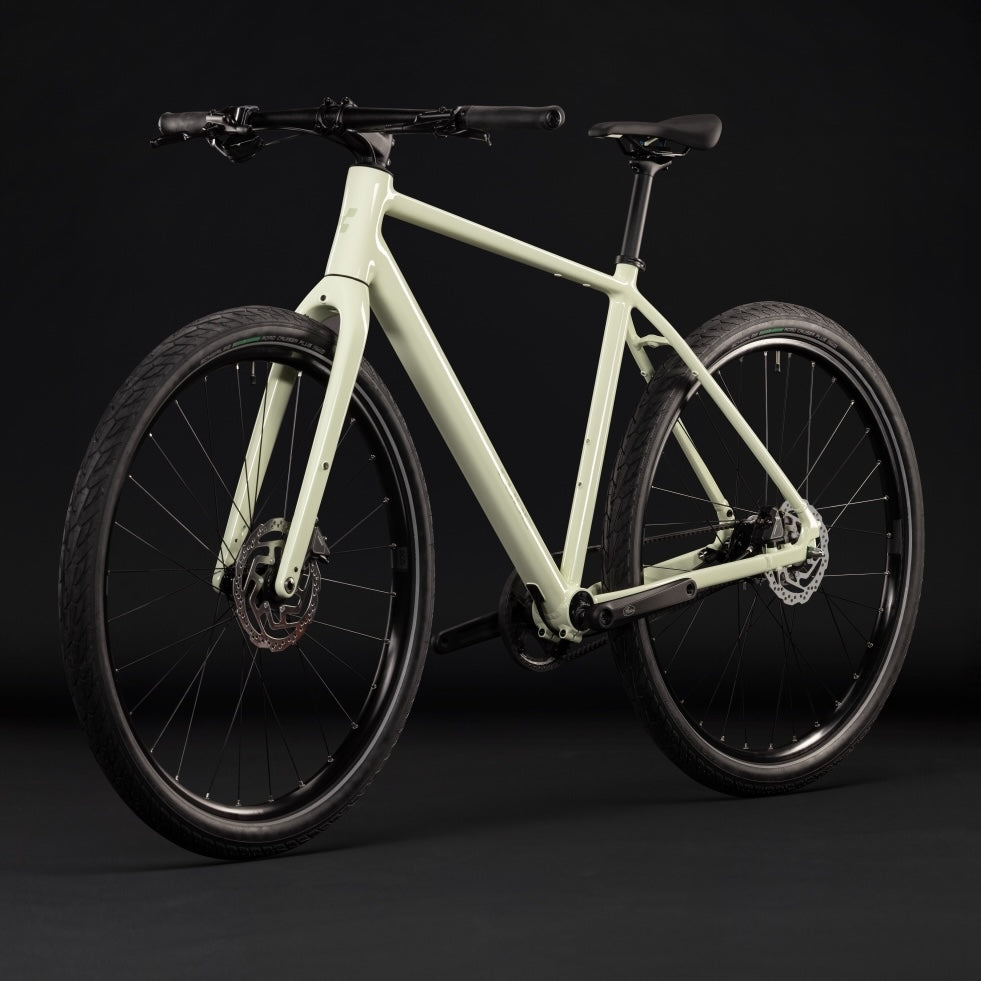

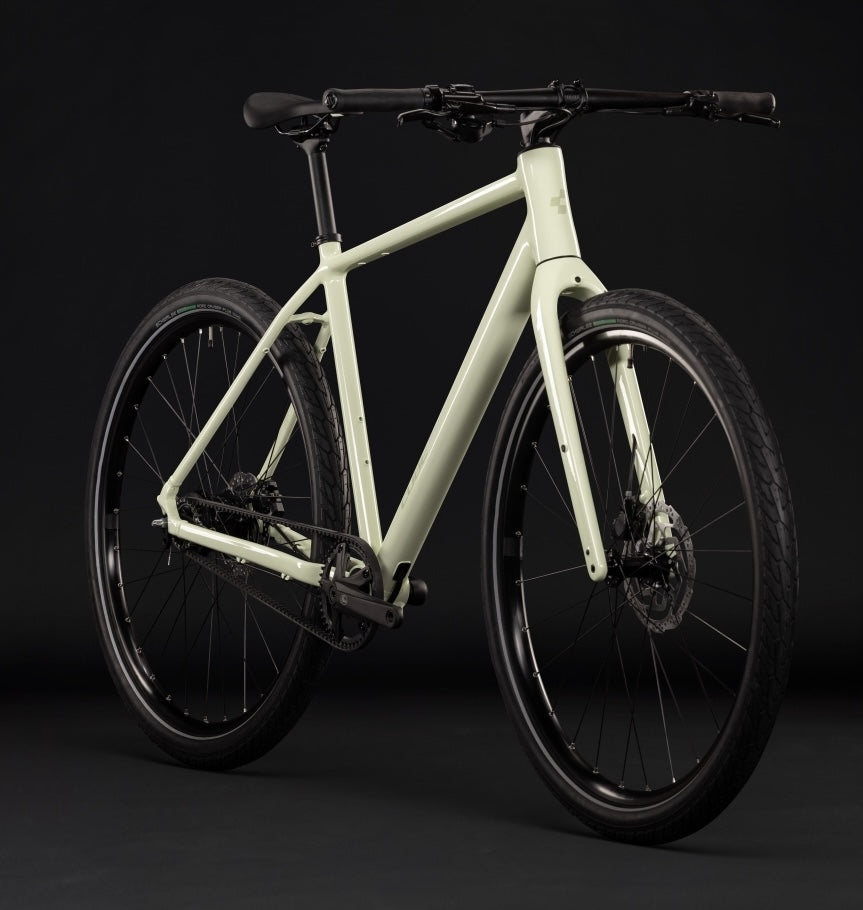

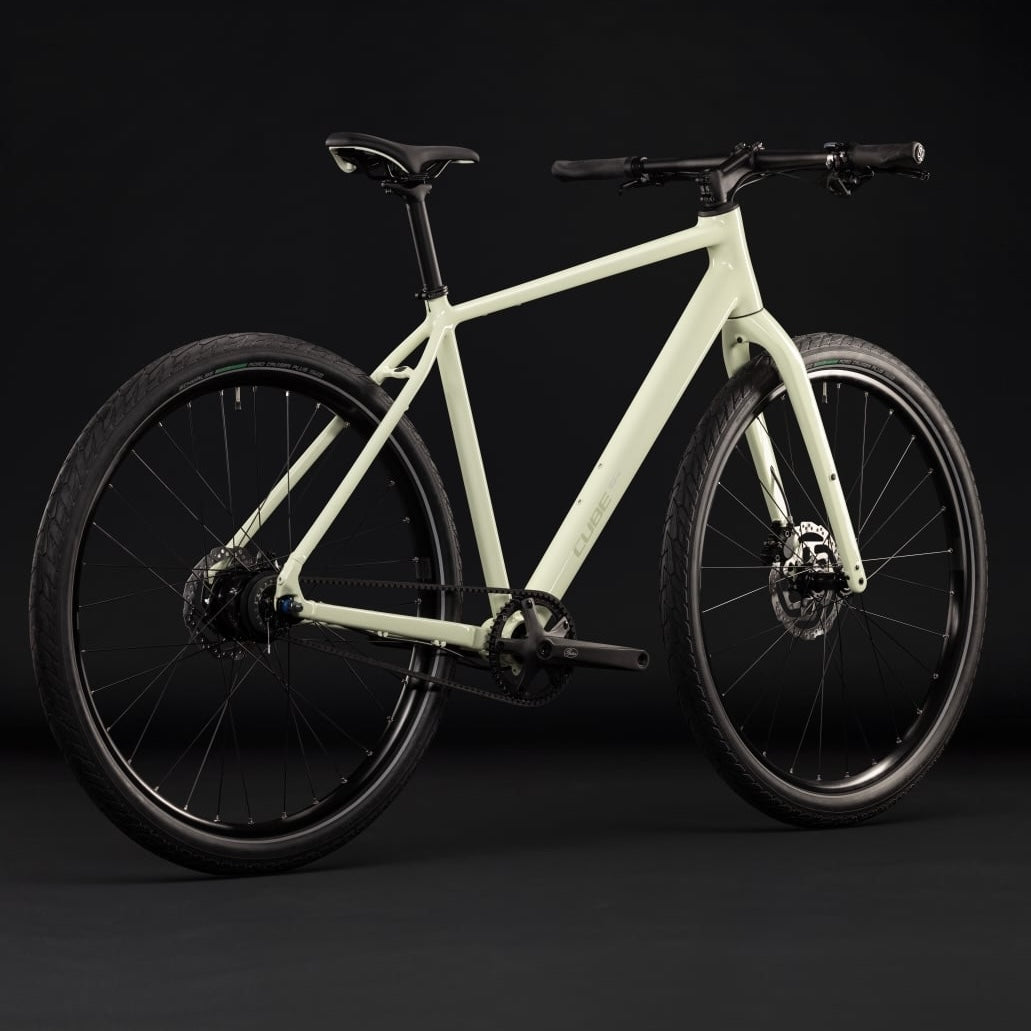

• Brand: CUBE

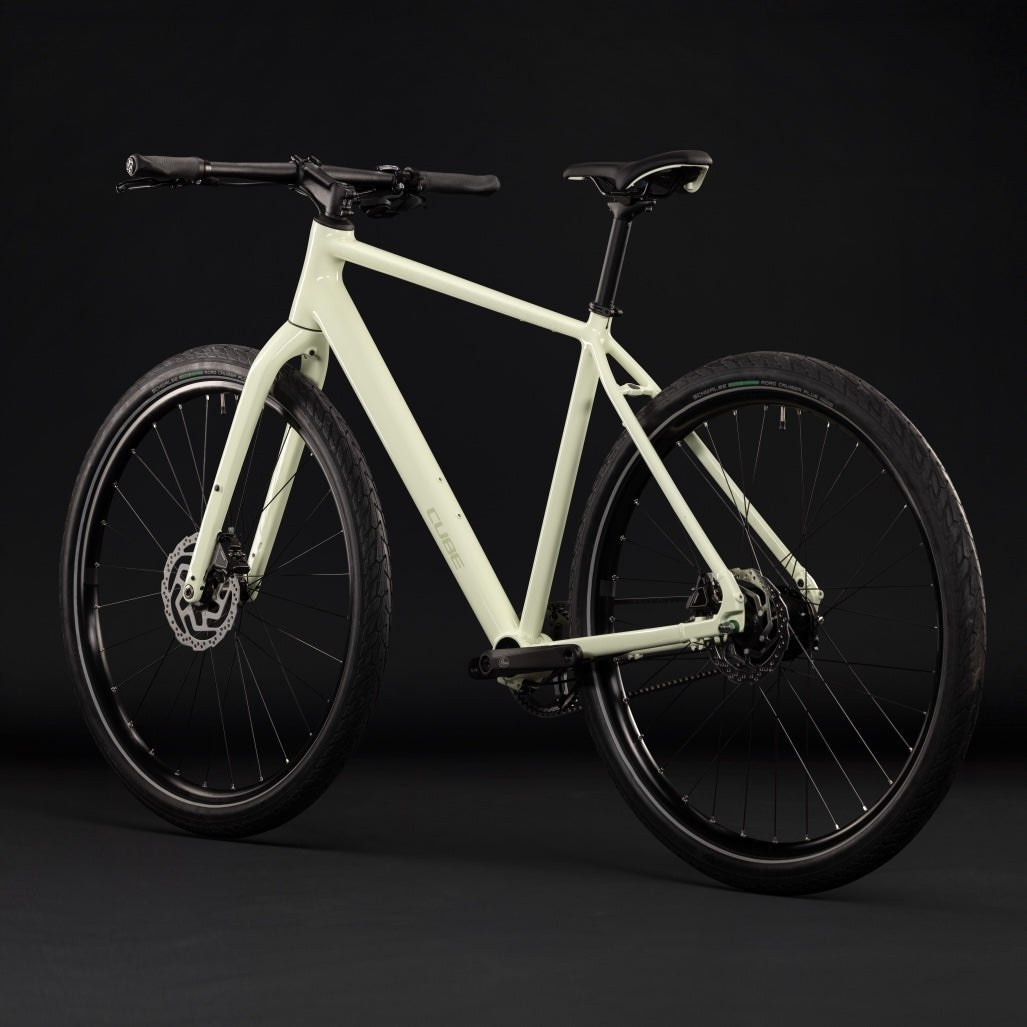

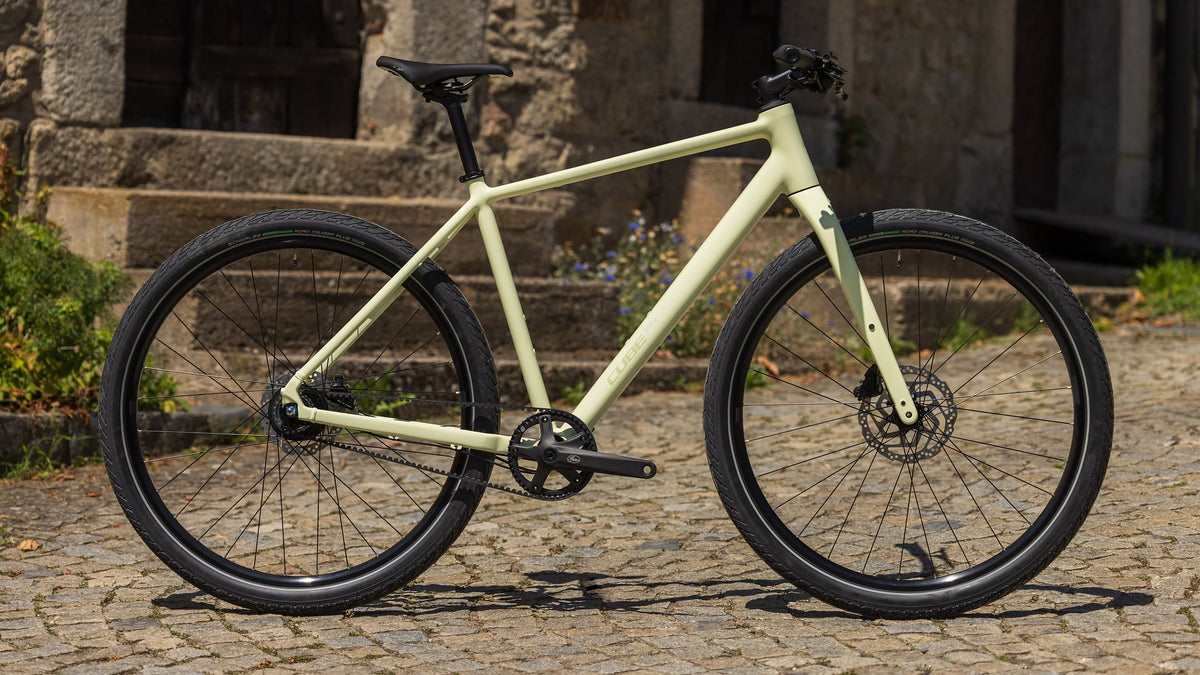

• Model: EDITOR PRO
• SKU / Article No.: 1161210
• Bike type: Urban / City Commuter Bike

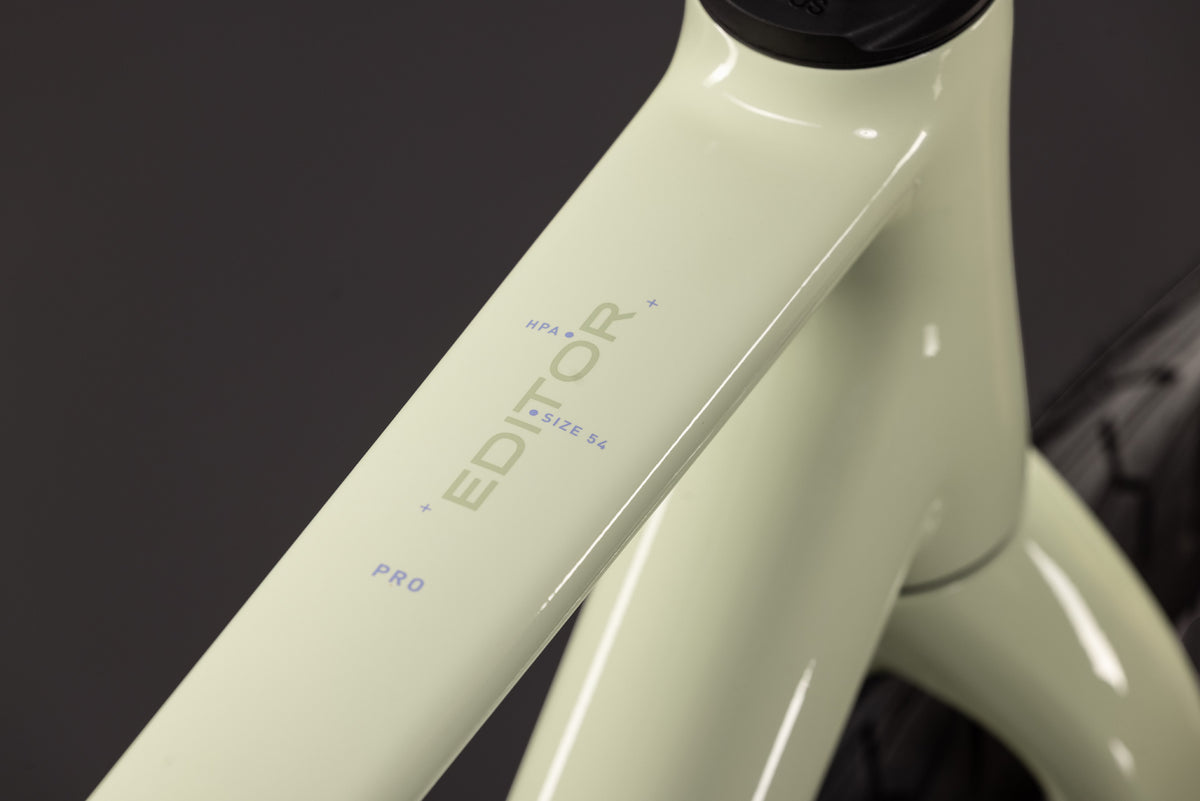

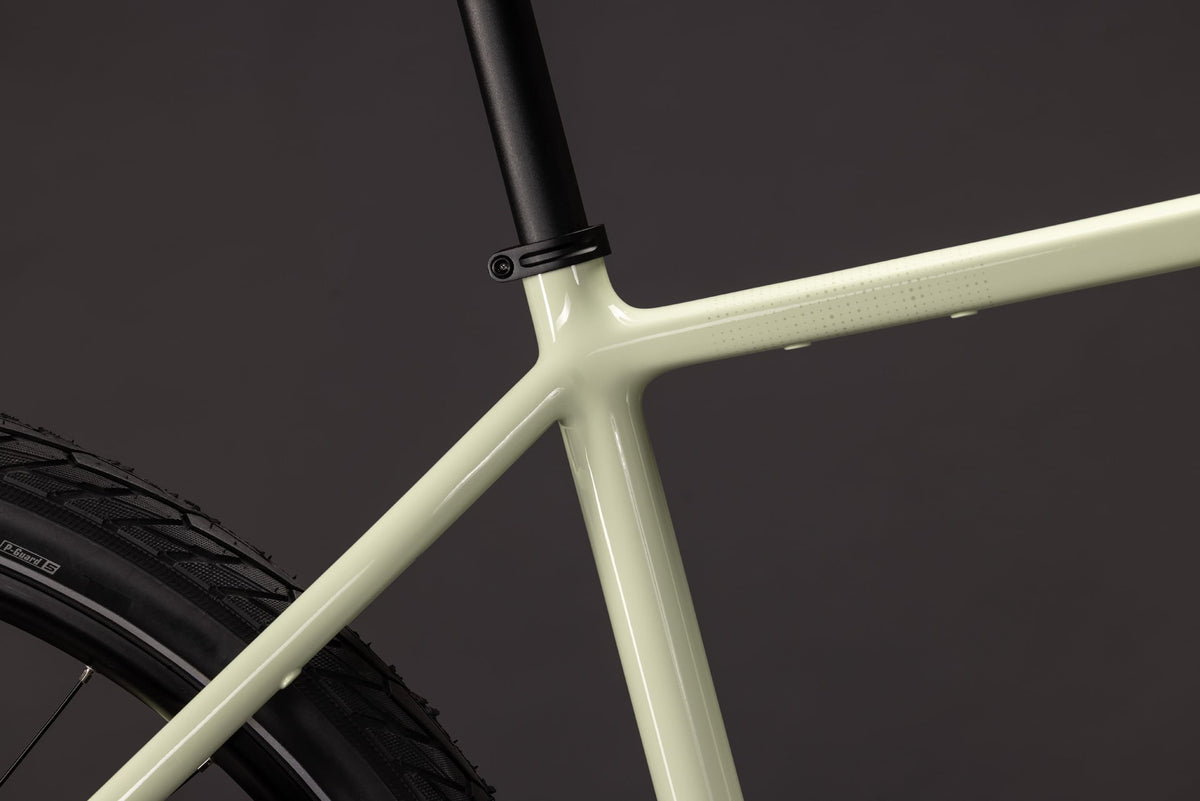

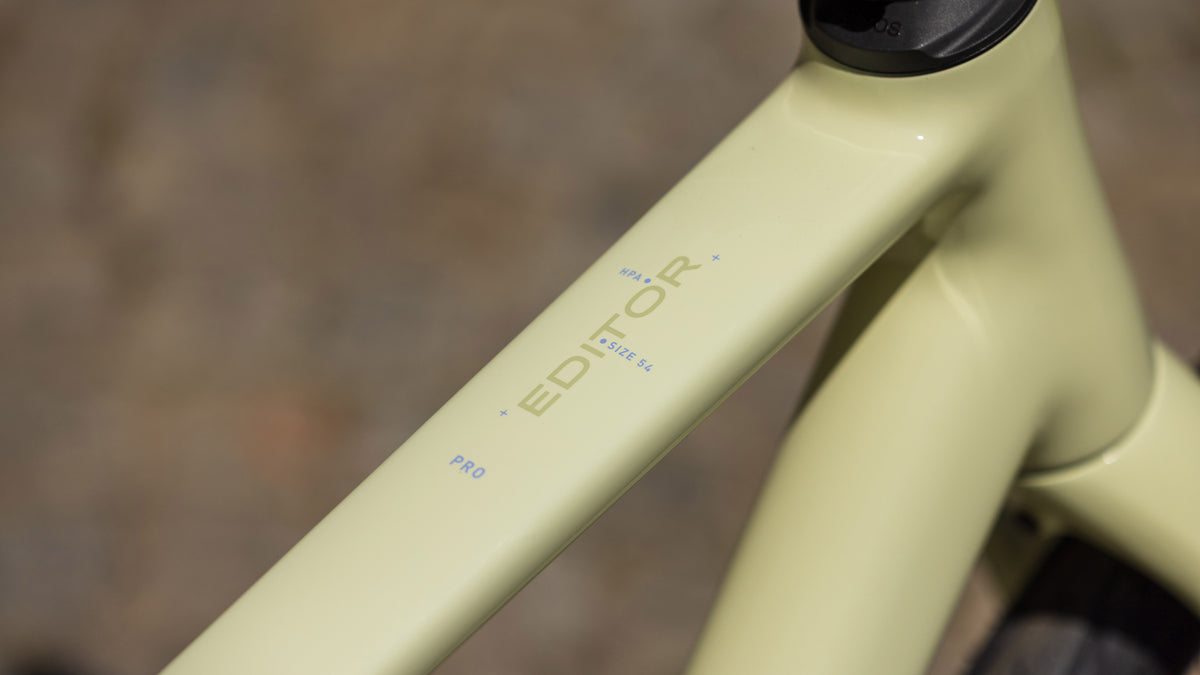

• Frame: Aluminium Superlite, Urban 29, Taper, Double Butted
• Frame features: Advanced Internal Cable Routing, Smooth Welding
• Frame geometry: Urban Geometry

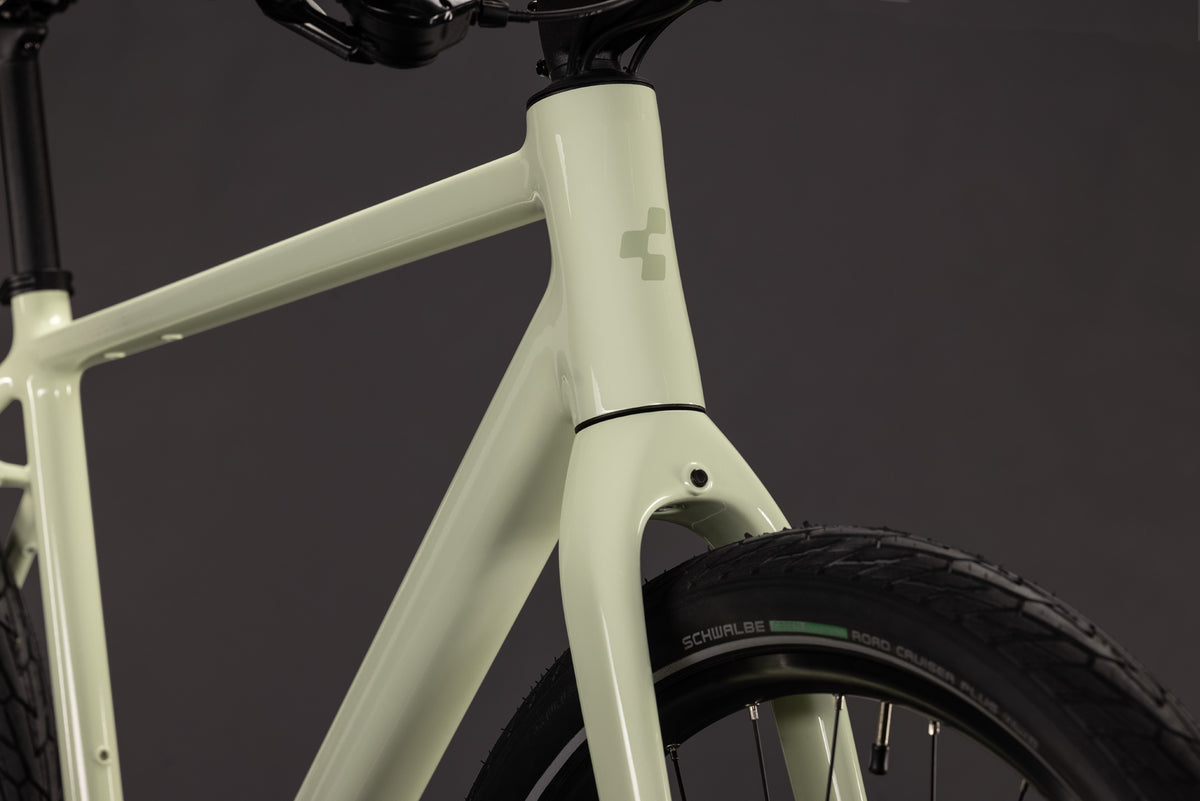

• Fork: CUBE TK Disc, C:62® Full Carbon, Taper, Flat Mount, 12 × 100 mm
• Tyre clearance: Up to 58 mm
• Bike weight: 13.4 kg
• Maximum rider weight: 100 kg, including clothing and equipment worn
• Bike category of use: 2
• Colour: Mellowyellow / Lilac

Drivetrain and Brakes

• Gear system: Shimano Alfine, 8-speed internal gear hub
• Rear hub: Shimano Alfine SG-S7001-8, 8-Speed
• Shifter: Shimano Alfine SL-S7000

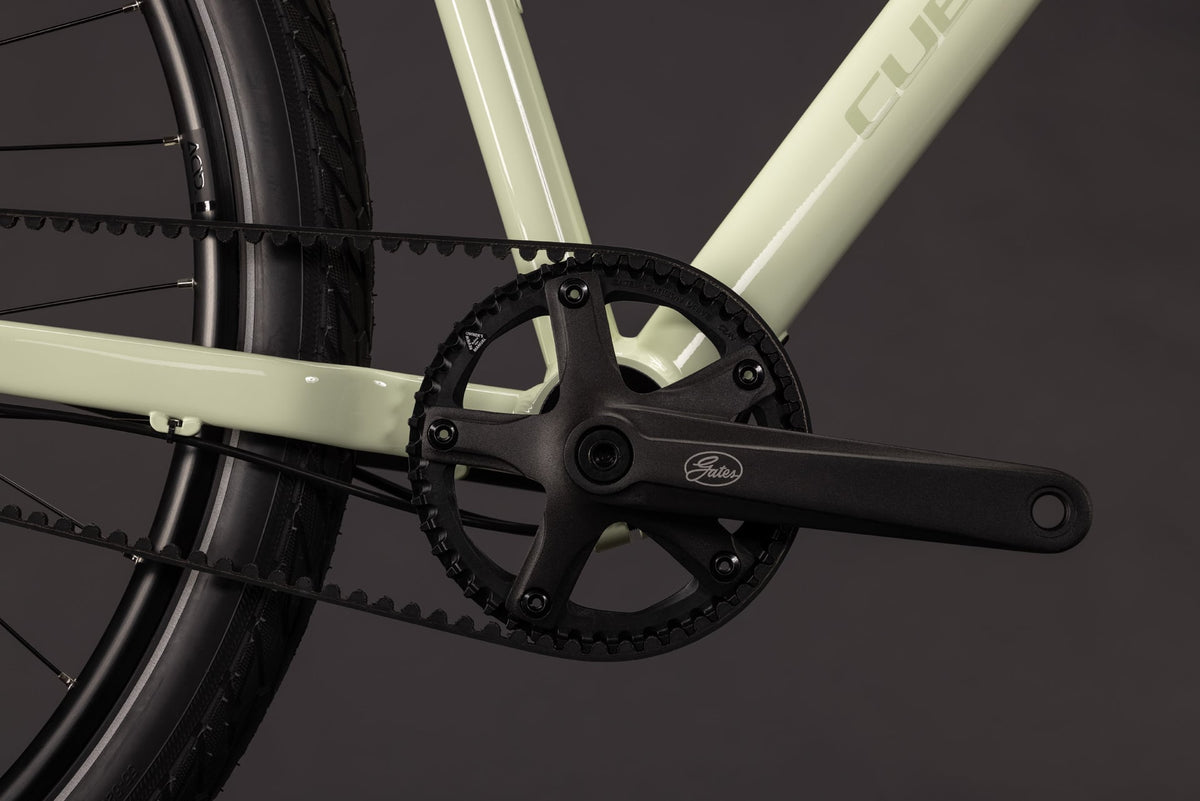

• Drive system: Gates CDN Belt Drive

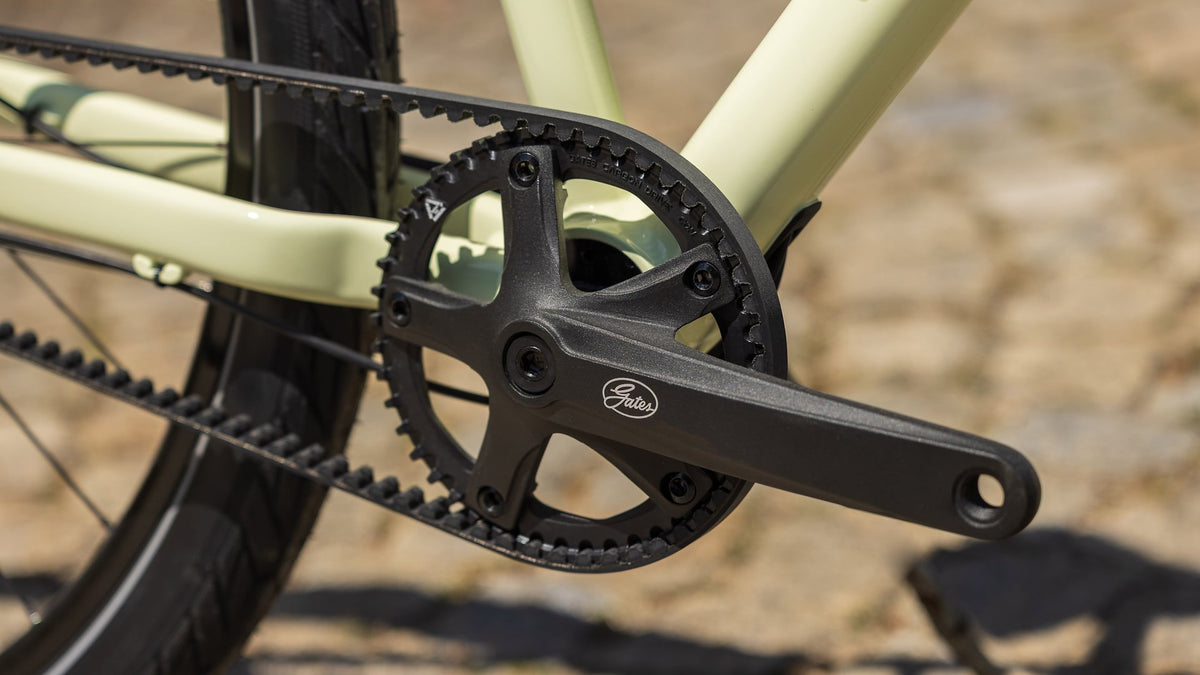

• Crankset: Gates S150 CDN, 46T, 45.5 mm beltline
• Rear sprocket: Gates CDC, 22T, 45.5 mm beltline
• Drive belt: Gates CDN, 120T
• Bottom bracket: Thun Zumba GBL 450
• Brakes: Shimano BR-MT200/UR300 Hydraulic Disc Brakes, PM/FM
• Brake rotors: 160 mm front / 180 mm rear

Wheels and Tyres

• Rims: ACID EX25, 28H, Disc, Tubeless Ready
• Front hub: ACID Aluminium Disc Centerlock, 28H
• Rear hub: Shimano Alfine SG-S7001-8, 8-Speed
• Tyres: Schwalbe Motion Road Cruiser Plus, ActiveL, 55 × 622
• Wheel size: 28" / 700C

Cockpit and Components

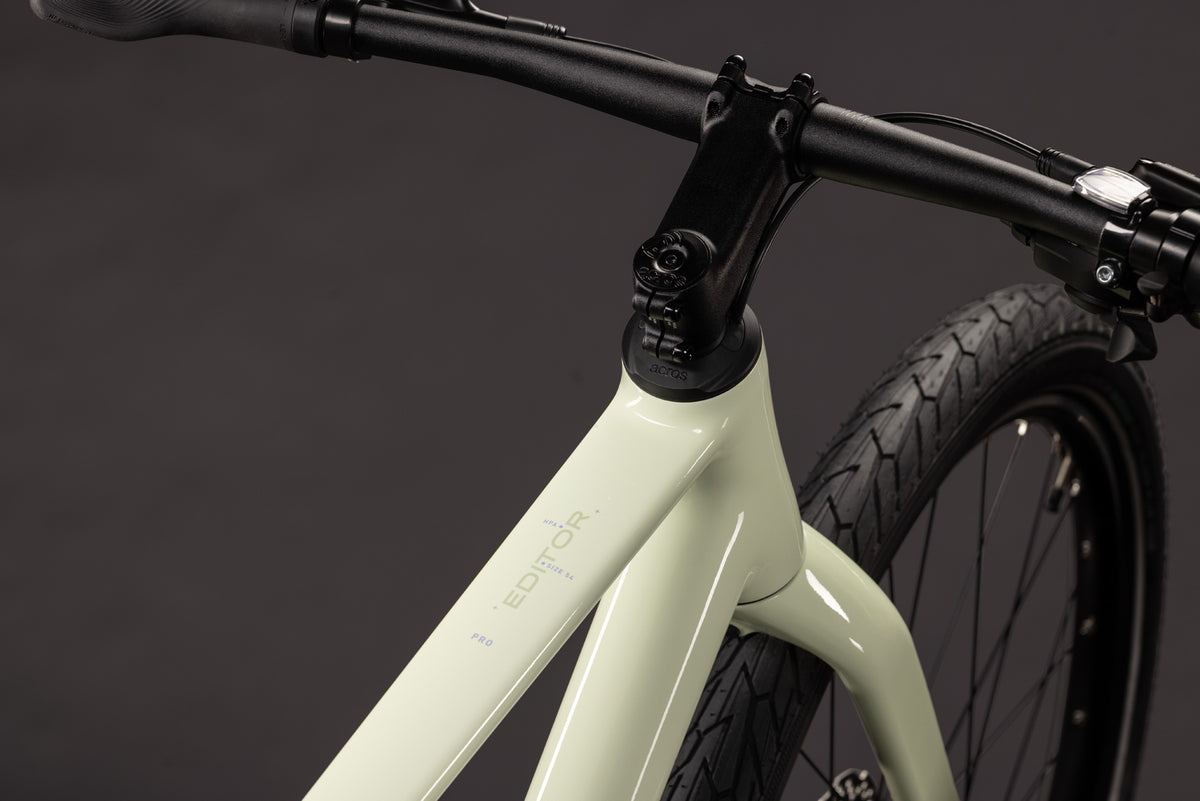

• Headset: Acros AZF-1035, ICR, Zero-Stack 1½" (ZS 56 mm)
• Stem: CUBE Performance Stem, 31.8 mm
• Handlebar: CUBE Flat Race Bar, 660 mm
• Grips: ACID Travel
• Saddle: ACID Nuance Lite
• Seatpost: CUBE Performance Post, 27.2 mm
• Pedals: ACID PP Trekking
• Bell: Ring Bell

Equipment and Compatibility

• Rear carrier: Compatible with optional ACID SIC 2.1 carrier systems
• Front rack: Optional low-rider rack mounting points, up to 10 kg load
• Mudguards: Compatible with suitable optional ACID mudguards
• Kickstand: Dedicated mounting points; optional accessory
• Lighting: Not included as standard equipment
• Tyre clearance: 58 mm maximum

Key Technologies

Aluminium Superlite – Heat-treated 6061 aluminium with double-butted tubes combines low weight, high strength and long-term durability.

C:62® Full Carbon Fork – Lightweight carbon construction reduces front-end weight and supports precise steering and responsive handling.

Shimano Alfine 8-Speed – Internally geared rear hub protects the shifting mechanism and provides a practical range of gears for city cycling.

Gates CDN Belt Drive – A clean, quiet belt-drive system that eliminates the need for conventional chain lubrication and reduces routine maintenance.

Urban Geometry – Frame geometry optimised for agile steering, stable cornering and confident riding in city traffic.

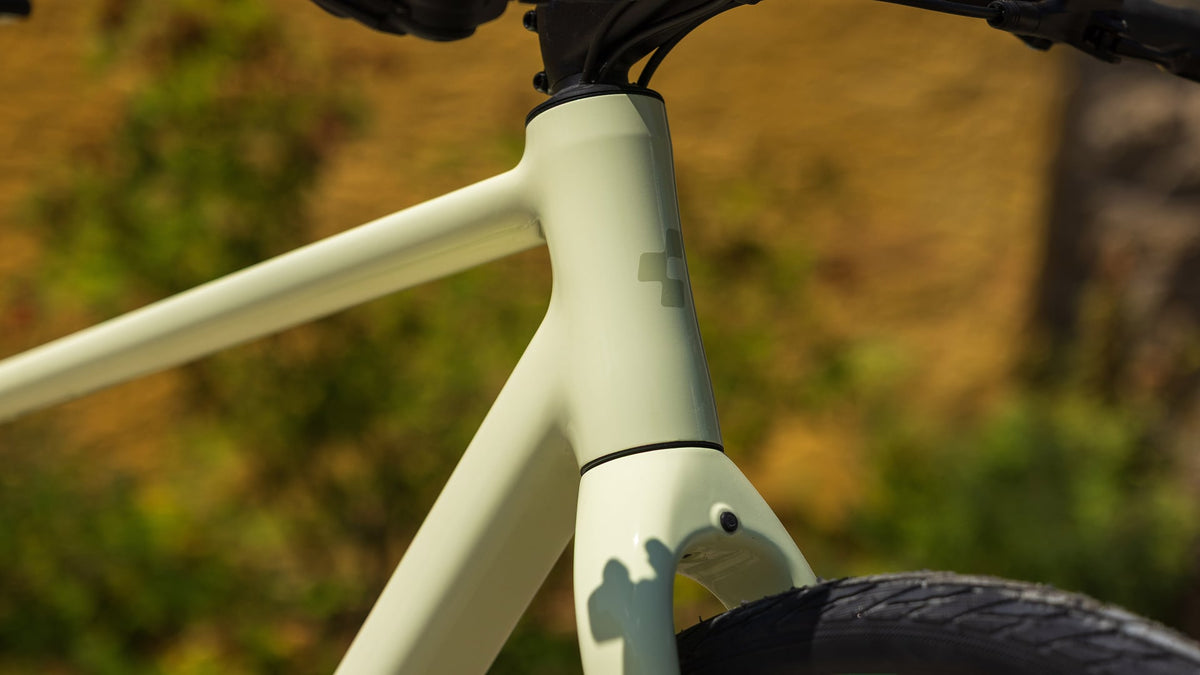

Advanced Internal Cable Routing – Cables enter the frame through the headset for a streamlined appearance and improved protection.

Smooth Welding – Refined aluminium welding creates smooth tube transitions and contributes to a clean frame design.

Double Butted Tubing – Variable tube wall thickness reduces unnecessary weight without sacrificing strength.

Shimano Hydraulic Disc Brakes – Consistent and controllable braking performance in dry and wet conditions.

ACID EX25 Tubeless Ready – Tubeless-compatible rims allow conversion with suitable tyres, valves and sealant.

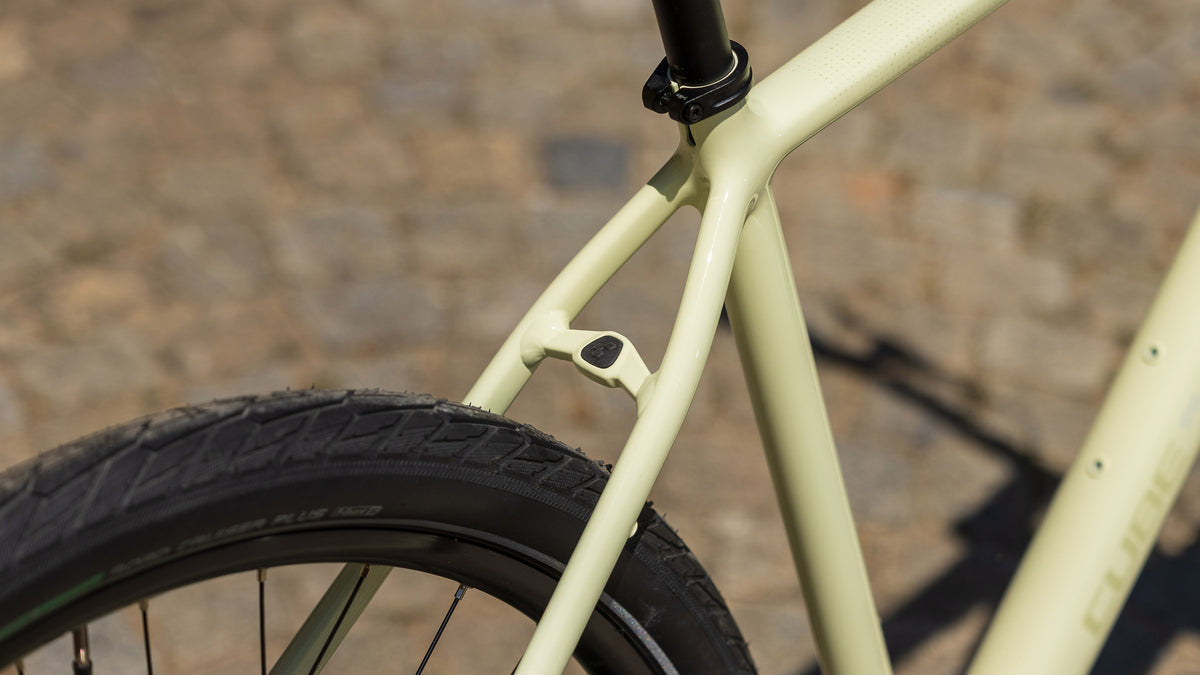

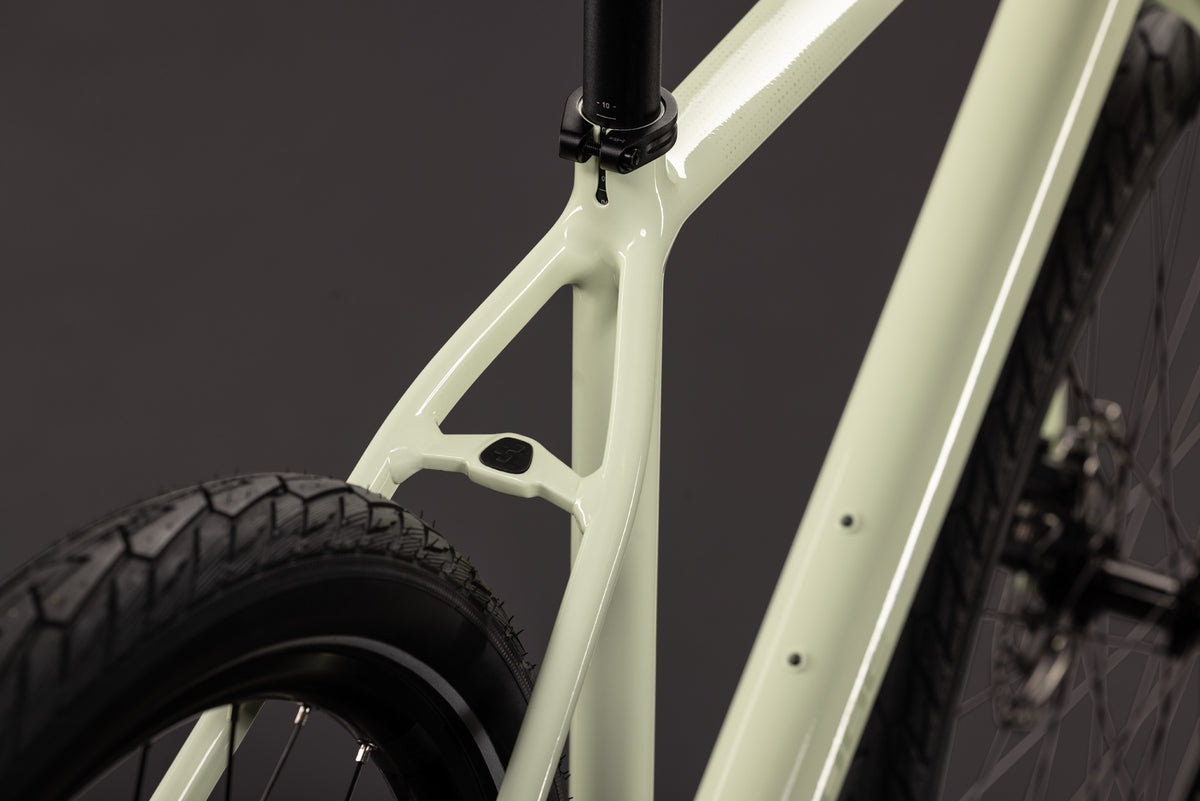

SIC 2.1 Carrier Compatibility – Frame mounting points allow the addition of a compatible semi-integrated rear luggage carrier.

Optional Low-Rider Mounts – Fork mounting points allow installation of a compatible front rack for carrying extra luggage.

Rider Recommendation

The CUBE EDITOR PRO is ideal for urban commuters, city cyclists and riders who want a stylish, efficient and low-maintenance bicycle for everyday travel.

Its Shimano Alfine internal gears, Gates belt drive, lightweight carbon fork and comfortable 55 mm tyres make it particularly suitable for daily commuting, city exploration, cycle paths and longer rides on paved roads. Optional carrier and mudguard compatibility also makes it easy to adapt for work, shopping and practical transportation.
