General Information

• Brand: CUBE
• Model: AIM PRO FE
• SKU / Article No.: 1140250
• Bike type: Fully Equipped Hardtail Mountain Bike

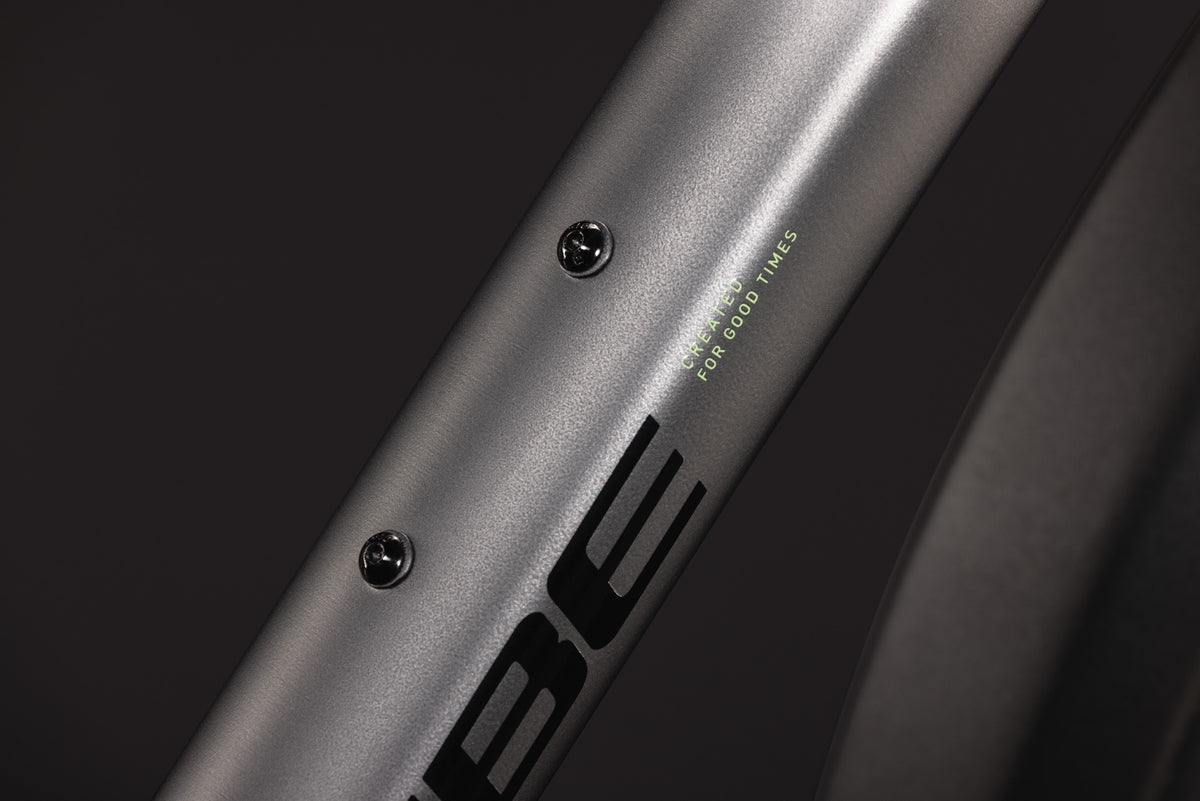

• Frame: Aluminium Lite, AMF, Double Butted
• Frame features: Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
• Frame construction: Smooth Welding
• Fork: SR Suntour XCT
• Front suspension travel: 100 mm
• Bike weight: 18.2 kg
• Maximum rider weight: 100 kg, including clothing and equipment worn
• Bike category of use: 2
• Colour: Grey / Black

Drivetrain and Brakes

• Rear derailleur: Shimano CUES RD-U6000-GS, 11-Speed
• Shifter: Shimano CUES SL-U6000, Rapidfire-Plus
• Drivetrain: Shimano CUES, 1 × 11-Speed

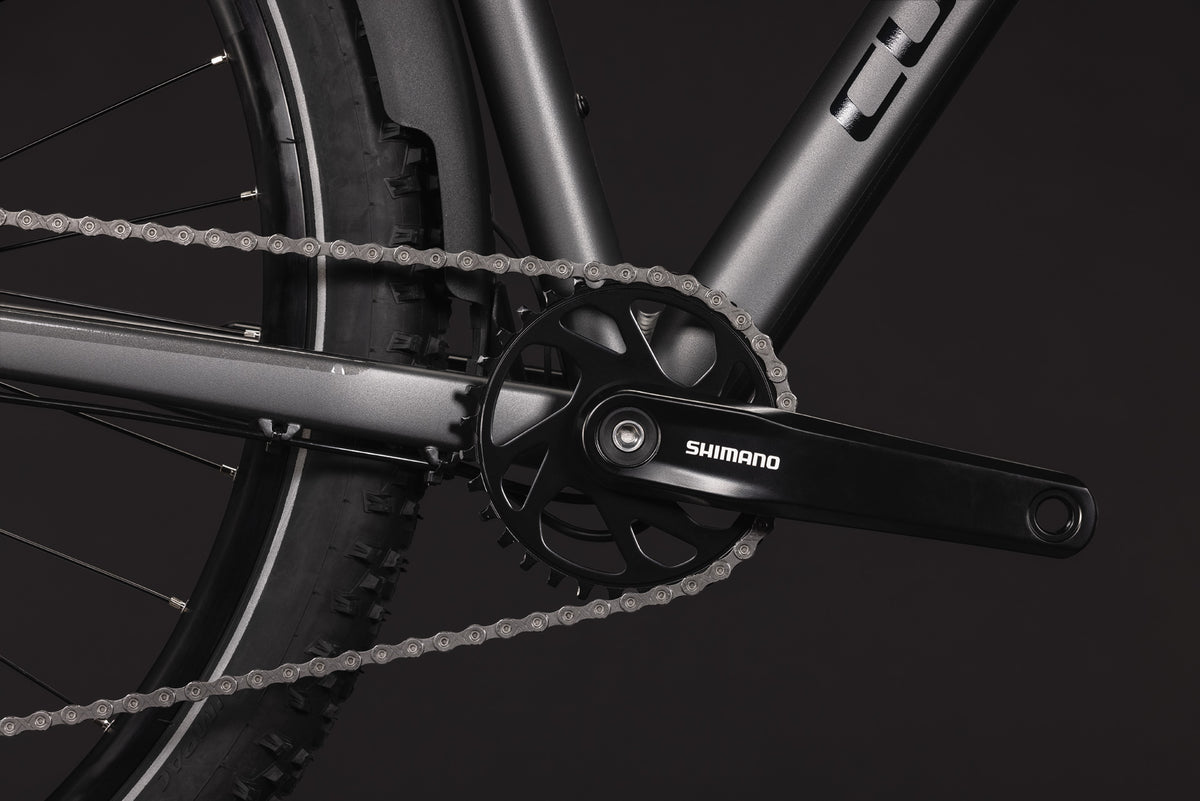

• Crankset: Shimano CUES FC-UT400, 32T
• Cassette: Shimano CUES CS-LG400, 11–50T
• Chain: KMC xGlide
• Bottom bracket: Thun Paso-ML, 73 mm BSA
• Brakes: Shimano BR-MT200/UR300 Hydraulic Disc Brakes
• Brake rotors: 160 mm front / 160 mm rear

Wheels and Tyres

• Rims: ACID EX25, 32H, Disc, Tubeless Ready
• Front hub: Shimano DH-3D32 Hub Dynamo, Quick Release
• Rear hub: ACID Pro, Quick Release, 6-Bolt
• Tyres: Impac Smartpac, Wire Bead, 2.25"
• Wheel standard: CUBE Size Split – 27.5" or 29", depending on frame size

Cockpit and Components

• Headset: CUBE FPH868p, Tapered, Semi-Integrated
• Stem: CUBE Performance Stem, 31.8 mm

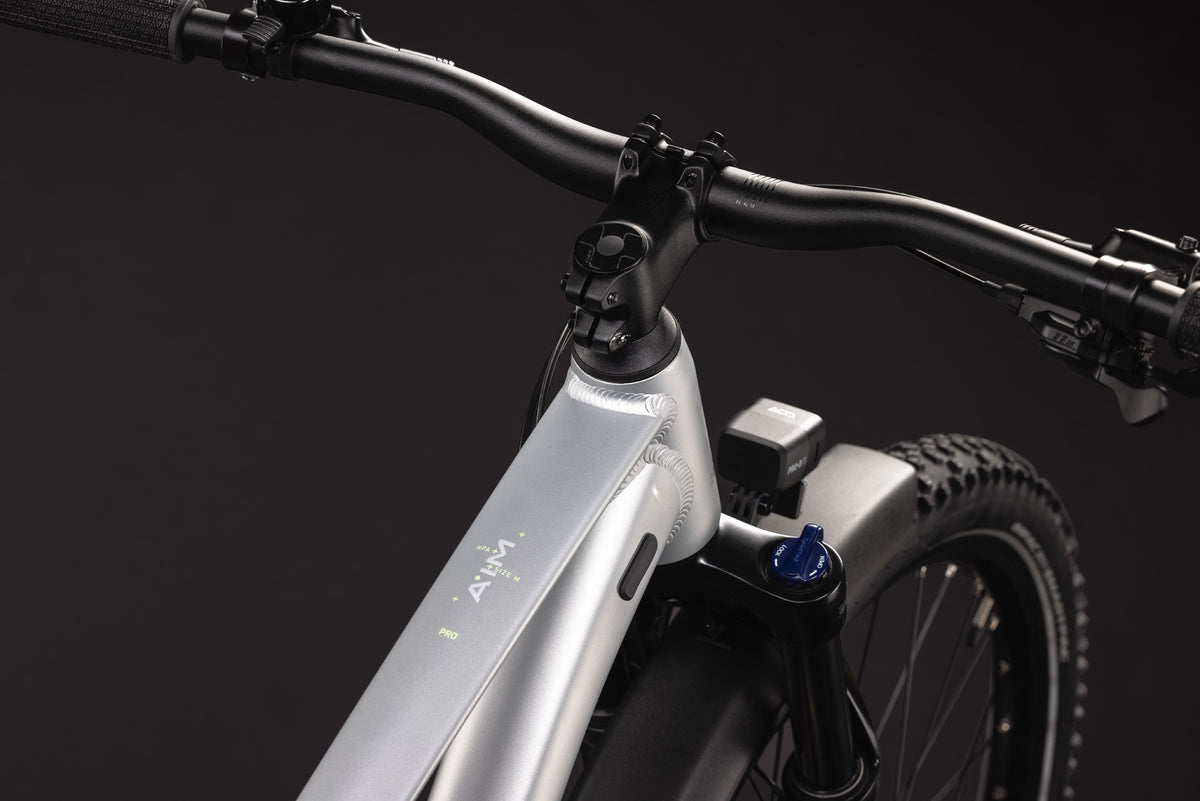

• Handlebar: CUBE Rise Trail Bar, 680 or 720 mm depending on frame size
• Grips: ACID Icon
• Saddle: ACID Venec Lite
• Seatpost: CUBE Performance Post, 30.9 mm
• Pedals: CUBE PP MTB

Touring and Everyday Equipment

• Rear carrier: ACID SIC 2.1 RILink
• Mudguards: ACID 57 SIC 2.0

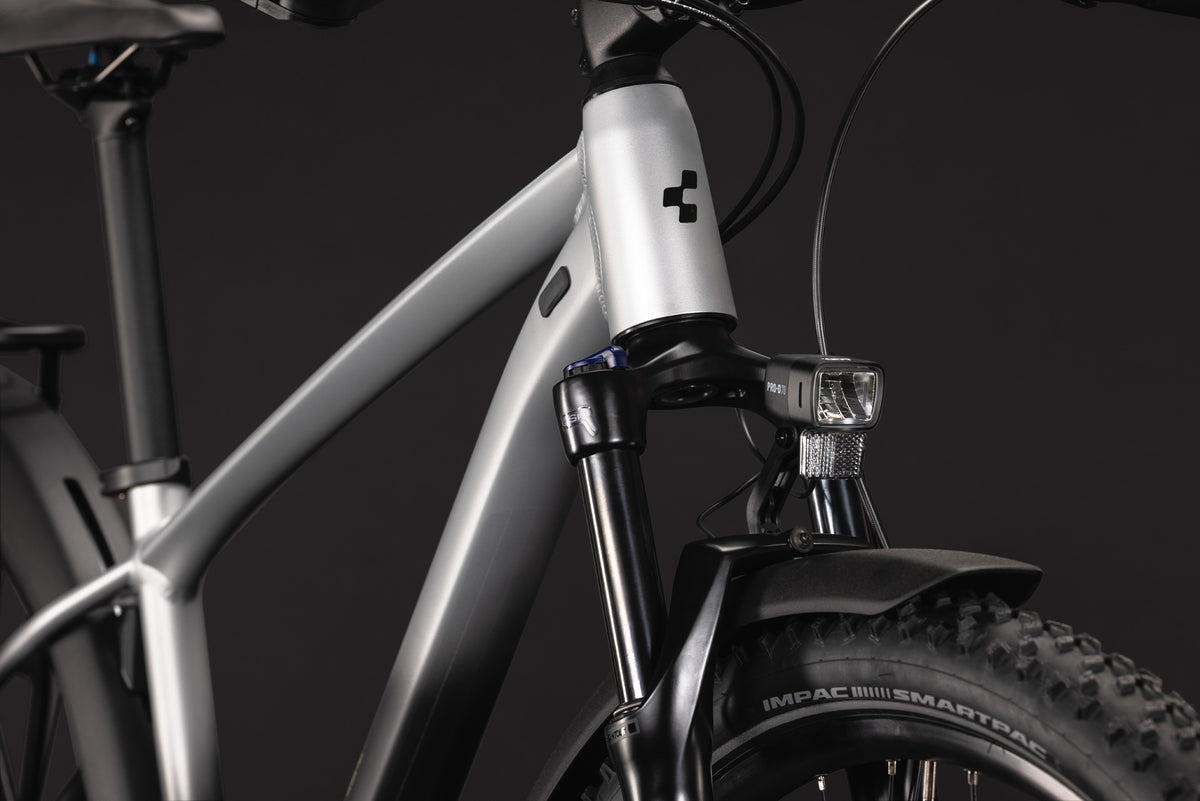

• Front light: ACID Pro-D 70
• Rear light: ACID Pro-D SIC 2.0
• Lighting power source: Shimano Hub Dynamo
• Kickstand: ACID FM Pure Silent
• Bell: ACID

Key Technologies

Aluminium Lite – Heat-treated 6061 aluminium construction combining low weight, strength and corrosion resistance.

Advanced Mechanical Forming (AMF) – Precisely shaped aluminium tubes designed to balance durability, stiffness and weight.

Double Butted Tubing – Variable tube wall thickness reduces unnecessary weight while maintaining structural strength.

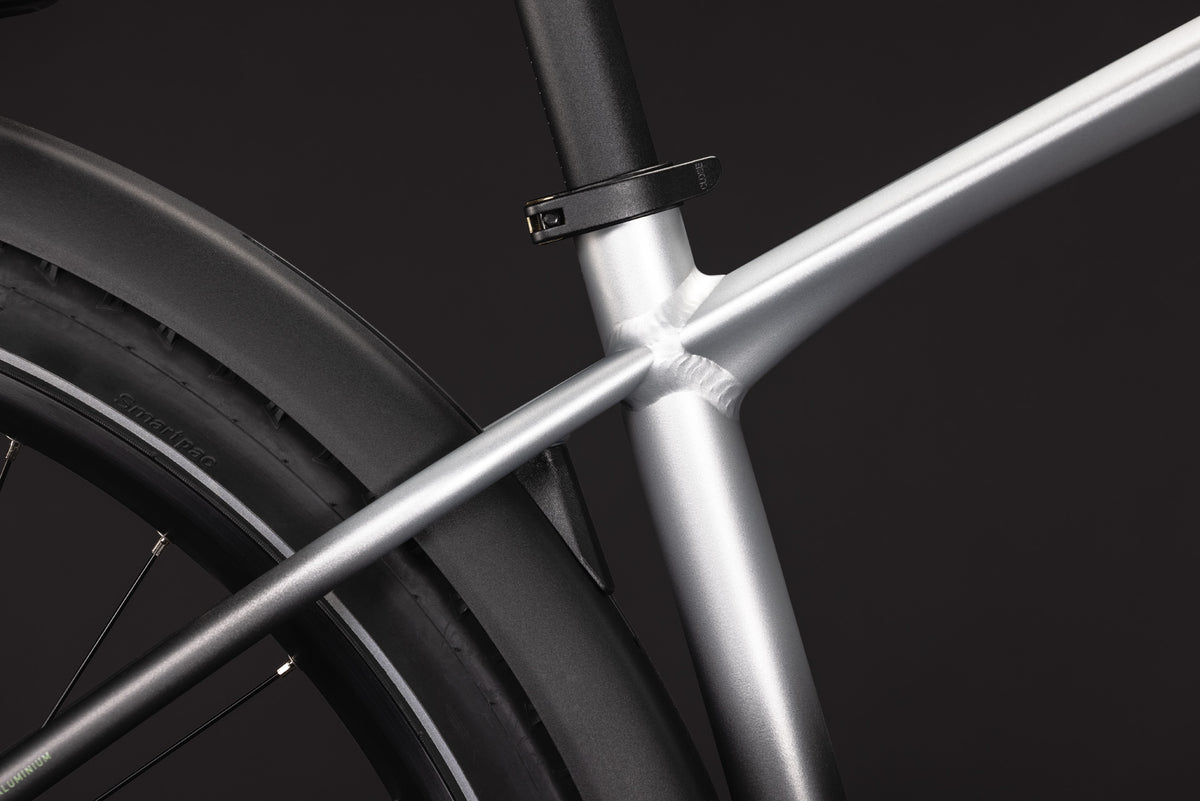

Smooth Welding – Refined weld construction creates clean frame transitions and helps distribute loads across welded joints.

Internal Cable Routing – Cables run inside the frame for improved protection and a clean appearance.

Fully Equipped (FE) – Factory-installed luggage carrier, mudguards, lighting and kickstand make the bicycle ready for everyday use.

Size Split – Wheel diameter is matched to frame size to provide balanced handling and rider comfort.

SR Suntour XCT Suspension – 100 mm suspension fork improves comfort and control on uneven roads and trails.

Shimano CUES – Durable 11-speed drivetrain designed for smooth shifting and a wide gear range.

Shimano Hydraulic Disc Brakes – Consistent braking performance in dry and wet conditions.

Semi-Integrated Carrier 2.1 – Practical luggage carrier system compatible with suitable ACID accessories.

Hub Dynamo Lighting – Generates electricity while riding to power the bicycle's lighting system.

Tubeless Ready Rims – Compatible rims support tubeless conversion with suitable tyres, valves and sealant.

Dropper Post Ready – Frame includes internal routing provisions for installing a compatible dropper seatpost.

Rider Recommendation

The CUBE AIM PRO FE is ideal for commuters, recreational cyclists and riders looking for a practical mountain bike for everyday travel and weekend adventures.

Its 100 mm suspension fork, wide MTB tyres and Shimano CUES 11-speed drivetrain make it well suited to city streets, cycle paths, gravel roads and moderate forest trails. The fully equipped design is especially convenient for riders who want one bicycle for commuting, errands and leisure cycling.
